Animation of aluminium extrusion process

Here you have a short video on the process of metal extrusion.

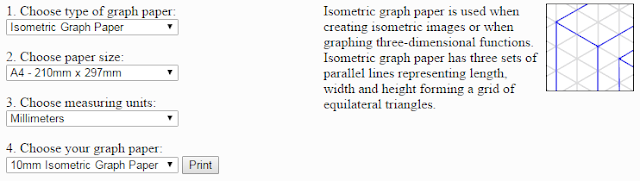

Isometric graph paper

In this site you can print isometric and other types of graph paper in differents sizes and spacings,

http://www.printfreegraphpaper.com/

Sistema dièdric

Generació de vistes

En les següents pàgines trobareu exercicis de vistes de diversos nivells, alguns amb possibilitat de fer girar la figura per dibuixar-la millor.

Nivell elemental - online

Nivell elemental - fitxa en pdf

Nivell mig - online

Nivell mig - fitxa en pdf

I aquí podeu generar els vostres propis exercicis:
http://www.educacionplastica.net/3dcube_model/3d_gen_eje.htm

Generació de peces a partir de vistes

I aquí trobareu exercicis ordenats per nivells per generar peces a partir de les vistes.

Les de nivell 0 són de diferents colors per ajudar a veure els diferents blocs.

Nivell 0

Nivell 1

Nivell 2

Gears

Simple machines - working together

Simple machines - Inclined planes

Simple machines - Pulleys

Simple machines - Wheels and axles

Simple machines - Levers

Watch this video. It's clear, complete and fun.

Materials - Who is who?

Which material do I have in the bag?

• Make teams of 4 people.

• Each team writes a list of 4 to 8 different materials and make sure they know the properties of them and what they are used for.

• The teams take turns to make questions that can be answered by "yes", "no", "quite", "not really" in order to guess which material the other team has in its bag? Each time the question must be asked by a different member of the team.

Is it ... [adjective]?Is it good for making ... [object]?
Is  it ... [material]?

List of properties	List of materials
electrical conductor	wool
thermal insulator	rayon
acoustic	aluminium
expands and contracts with temperature changes	polyamide
capable of welding	coal
transparent	diamond
translucent	polyester
opaque	cork
elastic	plastic
plastic	talc
malleable	hide
ductile	hardwood
strongh	sand
hard	rubber
tough	clay
dense	glass
porous	brass
permeable / waterproof	cotton (fabric)
prone to rust	cast iron
recycable / reusable	concrete
biodegradable	oil (petrol)
toxic	prefabricated wood
	paper
	marble
	softwood
	sponge
	linen
	steel
	silk

What is this?

What is this? - Materials and design starters

Designers are making surprising objects. What do you think are these?

Here you'll find the answers.

Metal machining

Very nice video on how metals are machined
